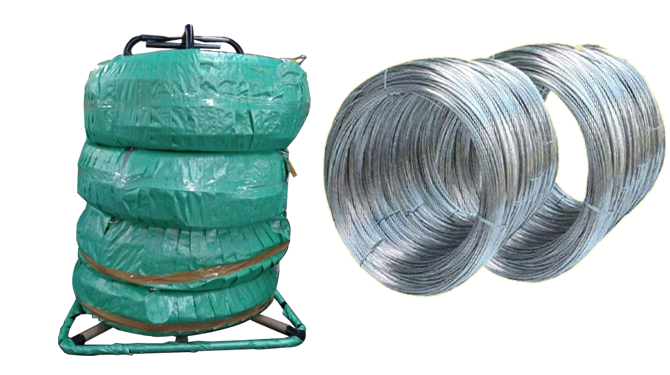

Stainless Steel Thick Soft Wire
Magic Inox also manufacturing Stainless Steel Thick Soft Wire from 1.80mm to 5.00mm matte soft and bright soft surface with admirable shining on grade 304, 304L, 316, 321, 316L etc.
SPECIFICATION FOR THICK SOFT WIRE QUALITY |
||||
|---|---|---|---|---|
S.No. |
Size Range (mm) |
Tolerance (mm) |
Condition |
Coil Shape |
| 1. | 1.80 - 2.50 |
+/- 0.015 |
Matte Soft & Bright Soft |
Direct Coil, In DIN 355 Spool |
| 2. | 2.55 - 4.00 |
+/- 0.020 |
Matte Soft & Bright Soft |
Direct Coil |
| 3. | 4.05 - 5.00 |
+/- 0.030 |
Matte Soft & Bright Soft |
Direct Coil |
SPECIFICATION FOR THICK SOFT WIRE UTS , ELONGATION & GRADES |
||||
|---|---|---|---|---|
S.No. |
Size Range (mm) |
UTS (N/MM2) |
ELONGATION (%) |
GRADE |
| 1. | 1.80 - 2.50 |
760 MAX |
40 MIN. |
AISI 304(1.4301), 304L(1.4307), 316L(1.4404), 321(1.4541), 316TI(1.4571) |
| 2. | 2.55 - 4.00 |
730 MAX |
40 MIN. |
AISI 304(1.4301), 304L(1.4307), 316L(1.4404), 321(1.4541), 316TI(1.4571) |
| 3. | 4.05 - 5.00 |
700 MAX |
40 MIN. |
AISI 304(1.4301), 304L(1.4307), 316L(1.4404), 321(1.4541), 316TI(1.4571) |
